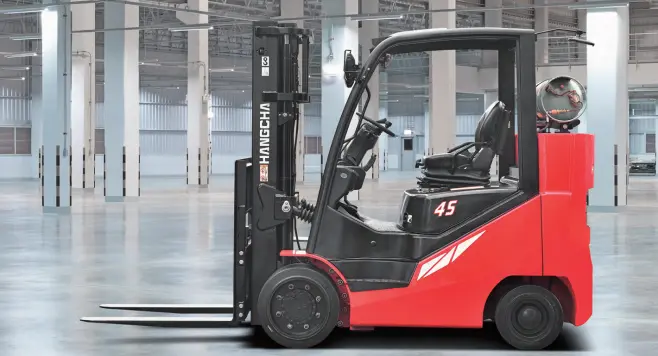

Forklift -CPYD35-XH11B-CB
CPYD35-XH11B-CB
As a part of the XF series from Hangcha Group, the Box Car Special forklift
adds a large capacity cushion tire truck to our full line of forklifts. This forklift
was designed with a vertical counterweight to meet tight spaced, railroad car
applications. The Box Car Special is also versatile enough to meet the demands
of typical large capacity cushion forklifts or become a paper roll special by
changing the mast to a paper roll clamp. This forklift also includes the latest
advancements from Hangcha. These advancements include LED ecient
lighting, a load-sensing hydraulic system, low-emission engine, noise/vibration
control, and a new control system. This is the Box Car Special forklift from
Hangcha Group

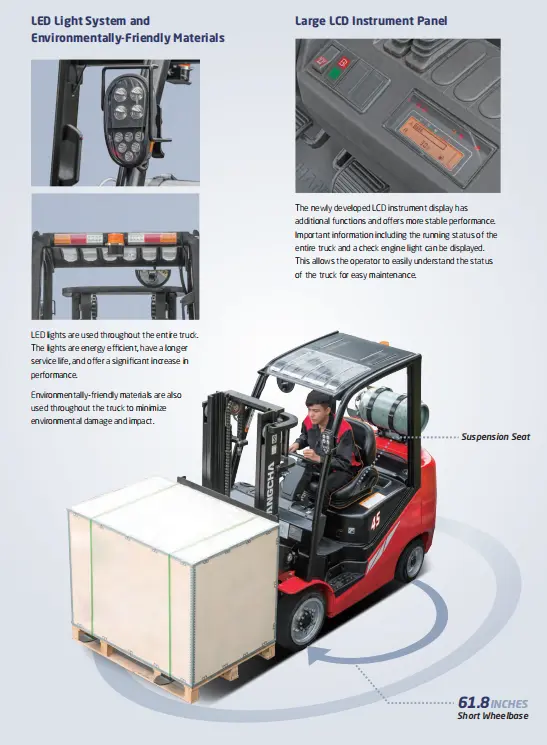

LED Light System and
Environmentally-Friendly Materials:
ED lights are used throughout the entire truck.
The lights are energy ecient, have a longer
service life, and oer a significant increase in
performance.
Environmentally-friendly materials are also
used throughout the truck to minimize
environmental damage and impact.
Large LCD Instrument Panel:
The newly developed LCD instrument display has
additional functions and oers more stable performance.
Important information including the running status of the
entire truck and a check engine light can be displayed.
This allows the operator to easily understand the status
of the truck for easy maintenance.
The Wide View Mast
Oers Better Visibility
New type of steel channels and mast system
of brand-new design are applied to increase
visibility in front of the driver.
Maintenance Hatch with a Saftey Latch
The maintenance hatch opens wide enough to provide easy
serviceability of key components. The safety latch prevents
the hatch from compromising operator safety when using the
truck.
The New Integrated Fuse Box
The next generation of integrated fuse box has been added to the
truck. It oers a better layout, ease of service and maintenance, and
is waterproof. The entire truck is also equipped with waterproof
connectors to increase the electronics' reliability
Reliable Hydraulic System
The hydraulic system has a longer service life and an increase in
eciency thanks to the optimized hydraulic breather structure
with a built-in return oil filter and the load-sensing hydraulic
steering system.
Optimized Cooling System
The cooling system has been designed to maximize cooling and
increase the reliability of the engine when working under heavy
loads. This system uses an aluminum radiator, independent oil
cooler, optimized heat transfer channel and a dual-hole
counterweight to increase cooling efficiency.
Panoramic Rear View Mirror
The panoramic rear view mirror allows the operator to have wider rear
visibility when operating the forklift.

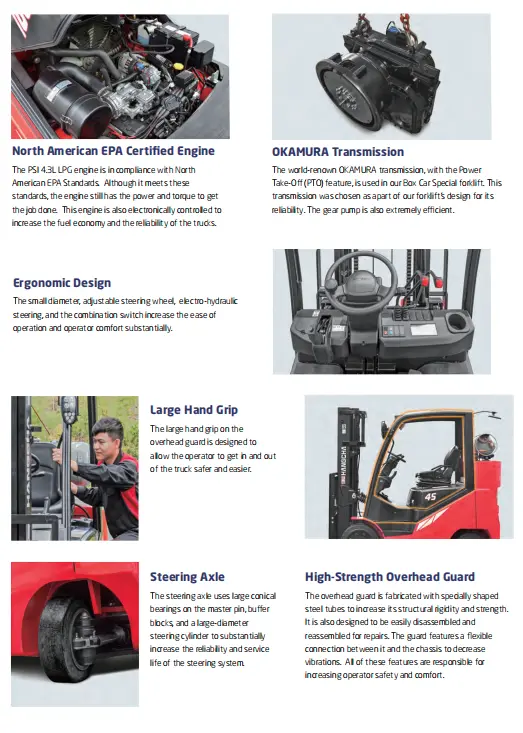

North American EPA Certified Engine
The PSI 4.3L LPG engine is in compliance with North
American EPA Standards. Although it meets these
standards, the engine still has the power and torque to get
the job done. This engine is also electronically controlled to
increase the fuel economy and the reliability of the trucks.
OKAMURA Transmission
The world-renown OKAMURA transmission, with the Power
Take-O (PTO) feature, is used in our Box Car Special forklift. This
transmission was chosen as apart of our forklift's design for its
reliability. The gear pump is also extremely efficient.

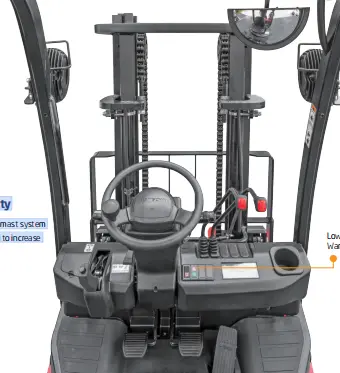

Ergonomic Design
The small diameter, adjustable steering wheel, electro-hydraulic
steering, and the combination switch increase the ease of
operation and operator comfort substantially
Large Hand Grip
The large hand grip on the
overhead guard is designed to
allow the operator to get in and out
of the truck safer and easier.
Standard Configuration:
Traction Unit
Small Diameter Steering Wheel
Integrated Combination Switch
Extended Hand Grip
Adjustable Steering Wheel
Mechanical Parking Brake (with self-lock)
Suspension Seat with Safety Belt
Large Capacity Aluminum Radiator
Dynamic Load Sensing System
Suspension Integral Overhead Guard
Whirlwind High Eciency Air Filter
Hydraulic Oil Suction Filter
Rain cover for the Overhead Guard
Safe Filter Element
Inclined Oil Way Latching Valve
Panoramic Rear View Mirror
Highly Ecient Exhaust Muer
Hydraulic Oil Dipstick
Smooth Cushion Tire
Access/Exit Safe Step
Highly Eciency LED Combination Front
and Rear Lights
Large Rubber Pedal Pad
Full Floating Transmission
Maintenance-Free Battery
Transmission Oil Filter
Hydraulic Oil Return Filter
Combined LCD Displays
Gearbox Dipstick
Maintenance Hatch Spring
Integrated Controller
Gearbox Oil Cooler
Clipboard
Alarm Light
Non-Asbestos Brakes
Electro-Hydraulic Steering
Charging Reminder
Suspended Operation Pedal
Oil Gauge
Water Thermometer
Cup Holder
Preheating Indication
Limited Free Lift 2 Stage Mast
Charge Indication
Standard Fork
Timer
Standard Carriage
Engine Oil Pressure Alarm
Standard Back Rest
Gearbox Oil Temperature Alarm
Maintenance Reminder
Load Safety Valve
Horn
Soft Landing System
Reverse Buzzer
Mast Lifting Buer Device
Tilt Piston Rod Jacket
Fan Protector
Rear Grip with Horn Button
Front Acoustic Hood of Steering Wheels
Low LPG Fuel Warning Indicator
Soundproof Pad on Maintenance Hatch
Swing-Out LP Bracket
Operator Presence Sensing System (OPS
options:
Customizable Paint Colors
LED Rear Work Light
Auxiliary Hydraulic Valve Group
LED Rear Working Light
Fire Extinguisher
High-Low Overhead Guard
Radiator Screen
Pre-Cleaner
Blue Light
Counterweight Grill
Swing-Down LP Bracket
Traction Tires
Non-Marking Cushion Tires
Paper Roll Clamp
Sideshift & Fork Positioner
Wider Carriage
Various Specialty Attachments
Specialty Forks
Belly Pan
